Description

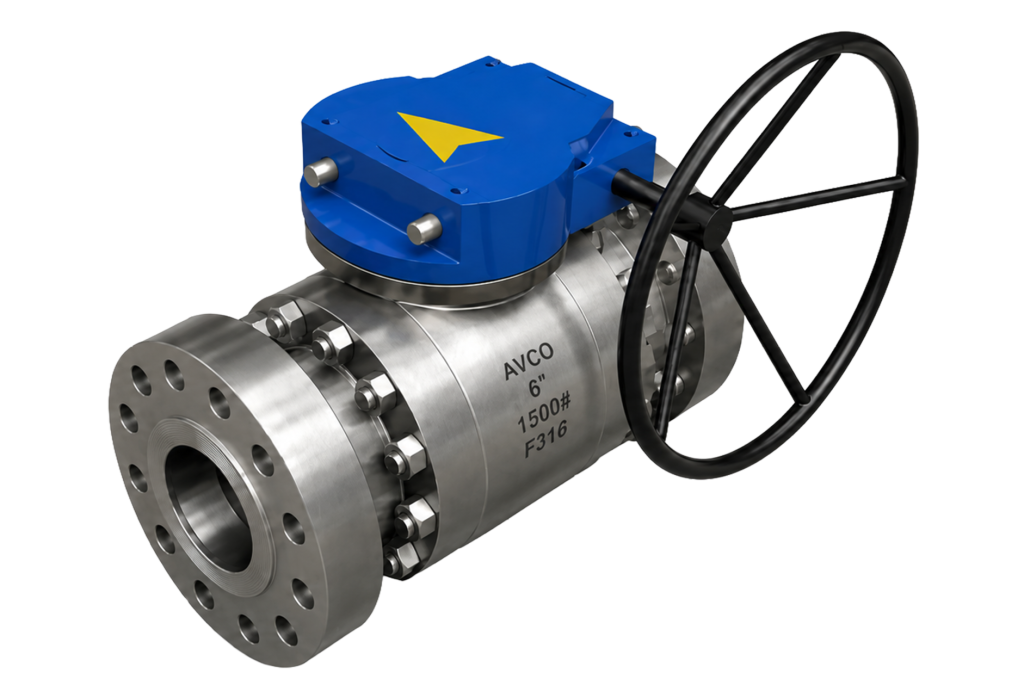

The AVCO 11100 series is a 3-piece trunnion ball valve designed to complement our floating ball offerings and is aimed at the higher pressure and larger valve size markets. Made from forged alloys, it is most common in 316 stainless steel (A182-F316) and carbon steel (A105), although other alloys are offered upon request. It is available from 2” through 28” with a full port ball to minimize the pressure drop across the valve. The valves are available with a choice of ANSI Class 150 through Class 2500 RF or RTJ flanges or butt weld end connections. The valve design and fire safe feature conform to API 607, API 6D and ASTM standards B16.34, B16.5 and B16.10. The standard valve is the AVCO 11100 Series, but it is also available as the AVCO 11500 Series which is the same valve configured with an extended bonnet for use in cryogenic applications. The extended bonnet adds a level of safety by ensuring that the operator is sufficiently removed from the cold service lines. Larger valves will require a gear operator, pneumatic or electric actuator to ensure smooth and effortless operation. AVCO can add these and other automation options to the valves as required. This valve is the perfect choice for large line applications in the water, oil & gas, chemical, and chemical industries.
