Description

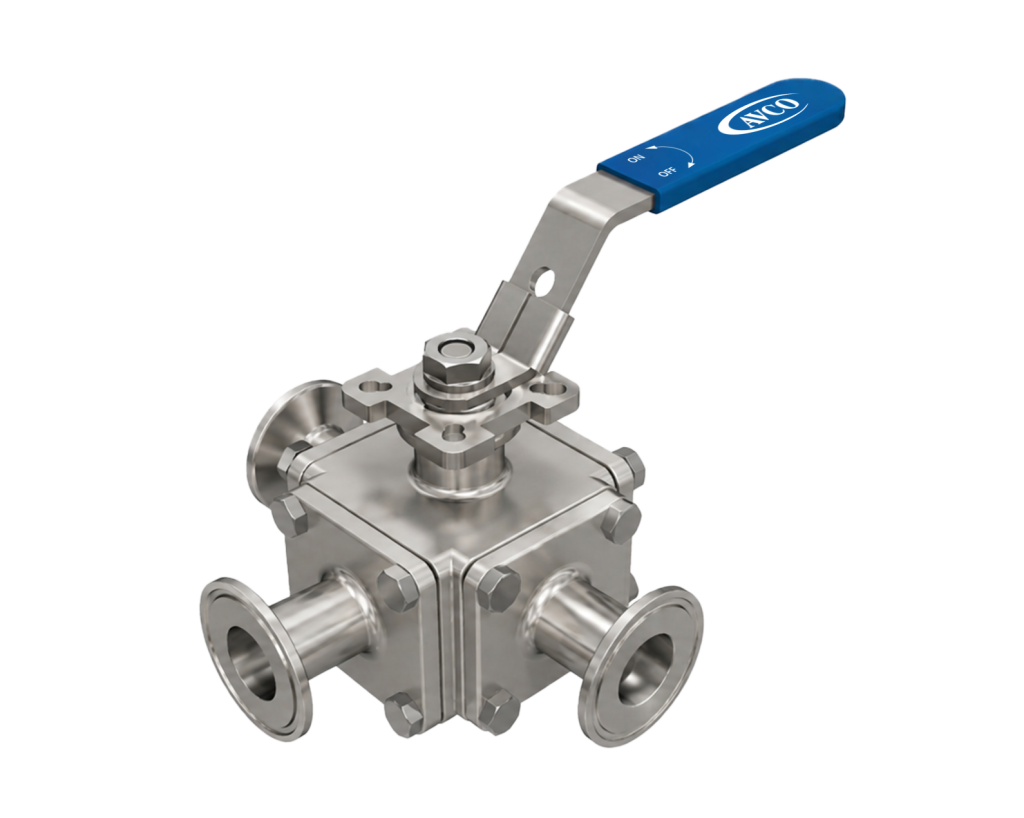

The AVCO 7100 series sanitary ball valve is a 3-way or 4-way side entry diverter ball valve with clamp or extended butt weld tube OD ends. The ball can be oriented in the valve to provide for mixing or diverting media in a variety of configurations with ‘L’ and ‘T’ port options. Seats are made from TFM to provide a wide operating temperature range for both hot and cold service conditions. The valves are delivered with balls configured to meet your required flow patterns. Cavity filled seats are available as an option to prevent media build up within the valve. Sizes ½” through 4” are available in 316 stainless steel with an ISO 5211 direct mounting pad that will accommodate most actuators without the need for a mounting kit. The extended butt weld tube ends are designed for easy automated orbital welding. Whether it is used in food & beverage, pharmaceutical, or other industries with sanitary needs, this valve offers great flexibility for mixing or diverting flow and has the potential to reduce the need for multiple valves.
